GProtect EPT Driver

GProtect VT EPT Hook 驱动

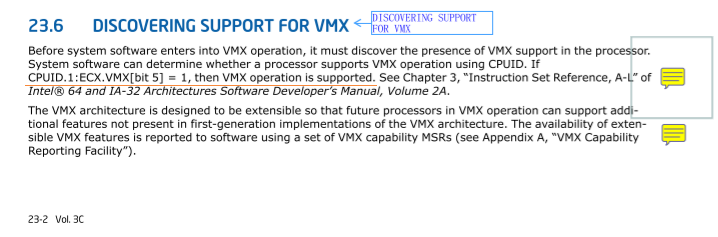

Virtualization Technology 是一种硬件虚拟化技术，在硬件虚拟化技术中，一个重要的概念是VMM(Virtual Machine Monitor)，它专指使用硬件虚拟化技术创建出的特权层，该层提供给虚拟机开发者，用来实现虚拟硬件与真实硬件的通讯和一些事情处理操作，因此VMM中的权限要大于操作系统，如果操作系统驱动处于ring0 层，那么可以将客户机的操作系统放到虚拟机中进行管理的VMM就处于 ring -1 层。 在这里简述下 vt ept hook的原理 首先检测下 当前CPU是否支持 VT，参考Intel手册 Volume 3: System Programming Guide

根据手册编写检测代码，通过 cpuid 检测 ecx.vmx 中第五位是否不为1

 CPUID Registers = { 0 };
    __cpuid((int*)&Registers, 1);
    if ((Registers.ecx & (1 << 5)) == 0) {
        return FALSE;
    }
    return TRUE;

    IA32_FEATURE_CONTROL_MSR Control = { 0 };
    Control.All = __readmsr(MSR_IA32_FEATURE_CONTROL);
    if (Control.Fields.Lock != 1) {

        return FALSE;
    }

    return TRUE;

  CR0_REG Cr0Register = { 0 };
    Cr0Register.All = __readcr0();

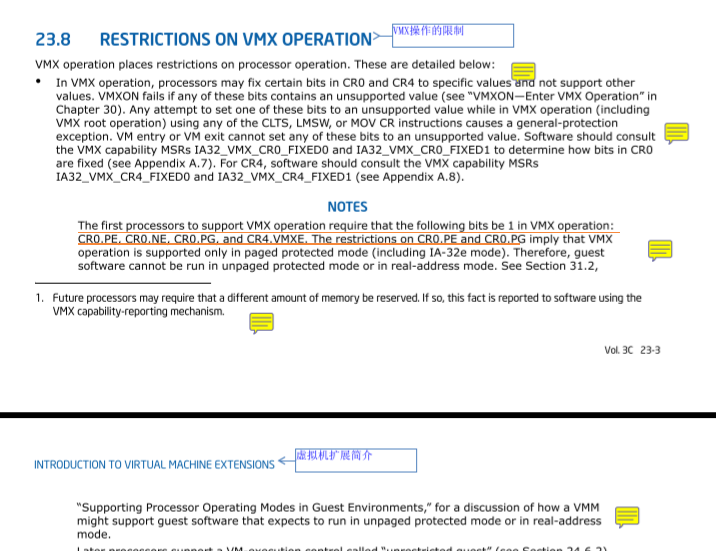

    if (Cr0Register.Fields.PE != 1 ||
        Cr0Register.Fields.PG != 1 ||
        Cr0Register.Fields.NE != 1) {

        return FALSE;
    }
    ---
    CR4_REG Cr4Register = { 0 };
    Cr4Register.All = __readcr4();
    if (Cr4Register.Fields.VMXE == 1) {
        return FALSE;
    }


检测操作系统支持 vt 后，就初始化页表，如果有页表随机基址，则搜索随机基址页表，然后保存MTRR，为EPT设置正确的类型

    if (!NT_SUCCESS(EptInitializePhysicalMemoryRanges())) {
        return STATUS_UNSUCCESSFUL;
    }
    EptInitializeMtrrEntries();

设置vmcs数据区

  // NOTE: Comment in any of those as needed
    const ULONG_PTR exception_bitmap =
        //1 << kBreakpointException |
        // 1 << InterruptionVector::kGeneralProtectionException |
        // 1 << kPageFaultException |
        0;

    VmxBasicMsr.All = UtilReadMsr64(MSR_IA32_VMX_BASIC);
    // See: Algorithms for Determining VMX Capabilities
    UseTrueMsrs = VmxBasicMsr.Fields.VmxCapabilityHint;


    //////////////////////////////////////////////////////////////////////////
    //          VM - Control
    // __vmx_vmlaunch error 7 (VM entry with invalid control field(s)b,c)

    //
    // Table 24-5. Definitions of Pin-Based VM-Execution Controls
    //

    VmPinctl.All = VmpAdjustControlValue((UseTrueMsrs) ? MSR_IA32_VMX_TRUE_PINBASED_CTLS
        : MSR_IA32_VMX_PINBASED_CTLS,
        VmPinctlRequested.All);

    Error |= UtilVmWrite(kPinBasedVmExecControl, VmPinctl.All);

    //
    // 24.6.2 Processor-Based VM-Execution Controls
    // 15-bit CR3-load exiting
    // 16-bit CR3-store exiting
    // 后面 veh 调试要处理 23-bit DR exiting ****
    // win10 必须执行对指令 RDTSCP 的支持不然卡死
    //

    //VmProcctlRequested.Fields.CR3StoreExiting = 1;
    //VmProcctlRequested.Fields.MovFrExiting = true;
    //vm_procctlRequested.Fields.UseIoBitmaps = true;
    //vm_procctlRequested.Fields.UseMsrBitmaps = true;

EPT前置知识，虚拟机的双层地址转换：

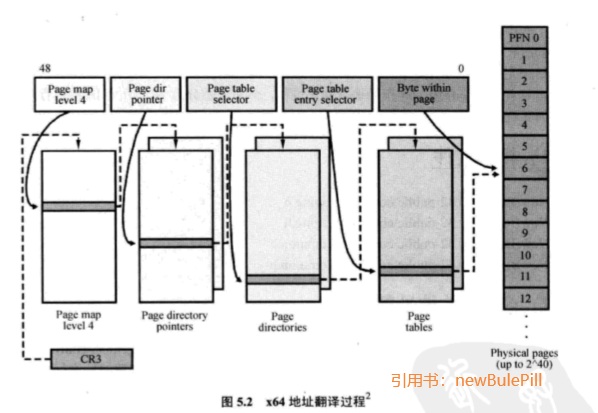

这里我们需要将虚拟机内页地址转换为虚拟机物理地址，在转换为真实的物理地址。 这里在构建完成我们的页表后，在 VMX root 模式下修改EPT，所以需要在VMCall 中实现开启 内存隐藏的部分

EnablePageForExecuteOnly(GuestContext->Stack->ProcessorData->EptData, *(ULONG64*)Context);

然后在 EPT表中查找需要找的地址,禁用目标界面的执行，如果当前在 vmx root 模式则需要时 tlb 缓存失效。

    Entry = EptGetEptPtEntry(pEptData, GuestPhysicalAddress);
    Entry->Fields.ReadAccess = FALSE;
    Entry->Fields.ExecuteAccess = TRUE;
    Entry->Fields.WriteAccess = FALSE;
    Entry->Fields.PhysialAddress = UtilPfnFromPage(MachinePhysicalAddres);

然后在 vmexit 事件中找到 EptViolation(48),检查当前异常是否在我们页面中，然后修改页面，即可完成 ept hook

 ULONG64 FaultPhysicalAddress = UtilVmRead64(kGuestPhysicalAddress);
    void* FaultVirtualAddress = (void *)( ExitQualification.Fields.ValidGuestLinearAddress? UtilVmRead(kGuestLinearAddress): 0);

    if (ExitQualification.Fields.EptReadable ||
        ExitQualification.Fields.EptWriteable ||
        ExitQualification.Fields.EptExecutable)
    {
        if (ExitQualification.Fields.CausedByTranslation)
        {
            BOOLEAN ReadFailure = ExitQualification.Fields.ReadAccess &&
                !ExitQualification.Fields.EptReadable;
            BOOLEAN WriteFailure = ExitQualification.Fields.WriteAccess &&
                !ExitQualification.Fields.EptWriteable;
            BOOLEAN ExecuteFailure = ExitQualification.Fields.ExecuteAccess &&
                !ExitQualification.Fields.EptExecutable;

            if (ReadFailure || WriteFailure|| ExecuteFailure) {
               //这里是我们自己设置的
                SetHandleEptViolation(Data,EptData, FaultVirtualAddress,(PVOID)FaultPhysicalAddress, ExecuteFailure, WriteFailure, ReadFailure);
            }
             else {
                …………
        }
        return;
    }
